Data domains

Data domains define the valid ranges and types of business elements. Data domains contain data attributes.

Add data domains​

Data domains are specified in a data domain model in the subpanel of a collection.

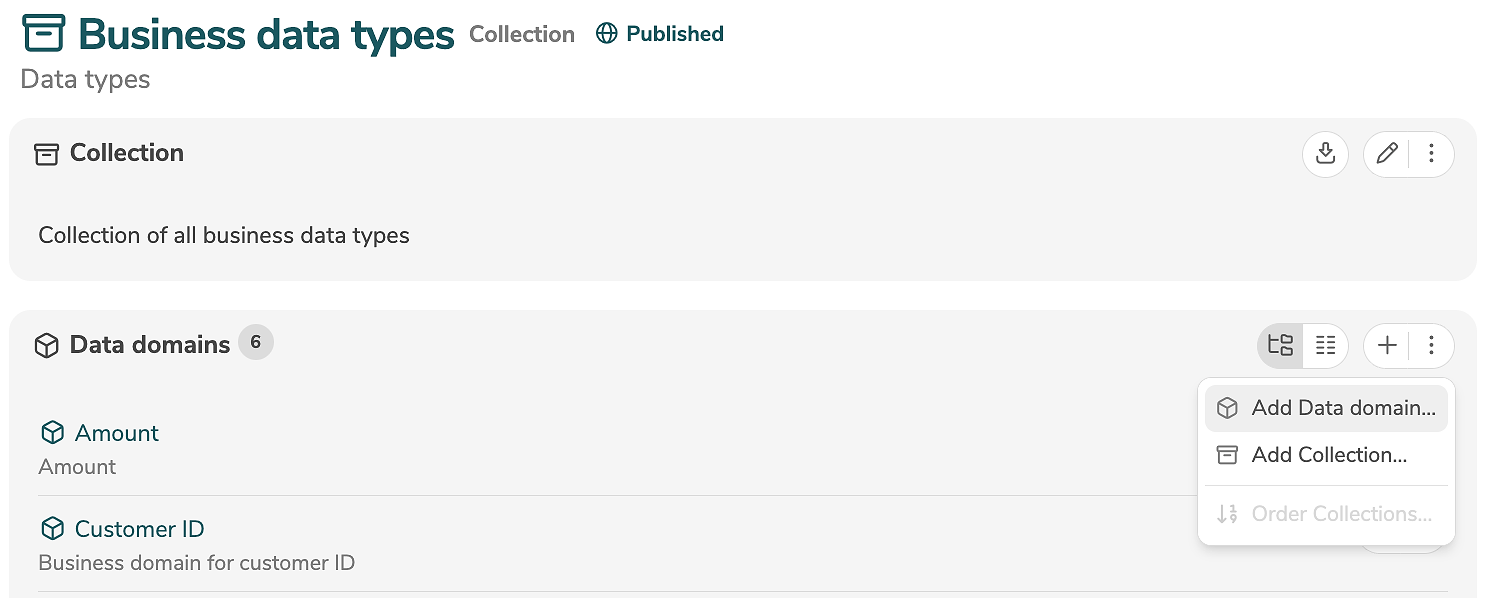

Options menu

A new data domain is added by clicking the icon "+" (or by selecting "Add Data domain..." in the menu).

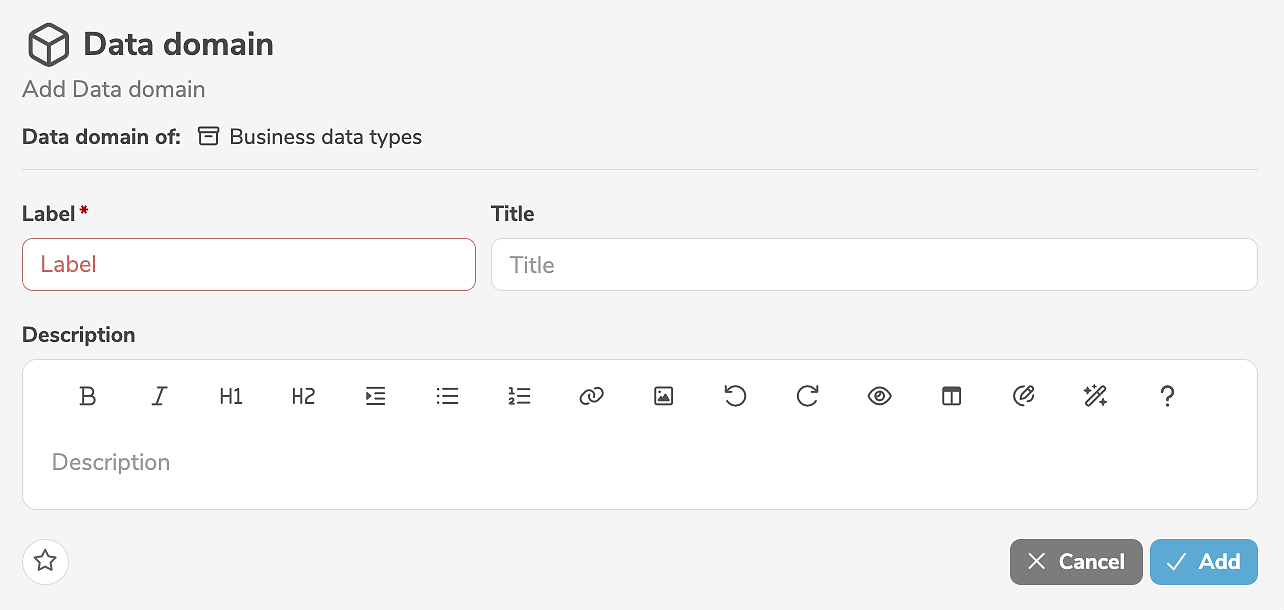

Add

It is mandatory to assign a label to the data domain. In addition, a title and a description can be specified.

Clicking "Add" creates the data domain.

Tooltip

Data domains can also be created by duplicating other data domains.

Edit data domains​

A data domain is edited in the main panel of the data domain, by clicking the edit icon (or by selecting "Edit Data domain" in the menu).

Edit

The edit mode allows the modification of all standard input fields. Additional, customer-specific fields can be added using annotations and will then also appear in the edit mode.

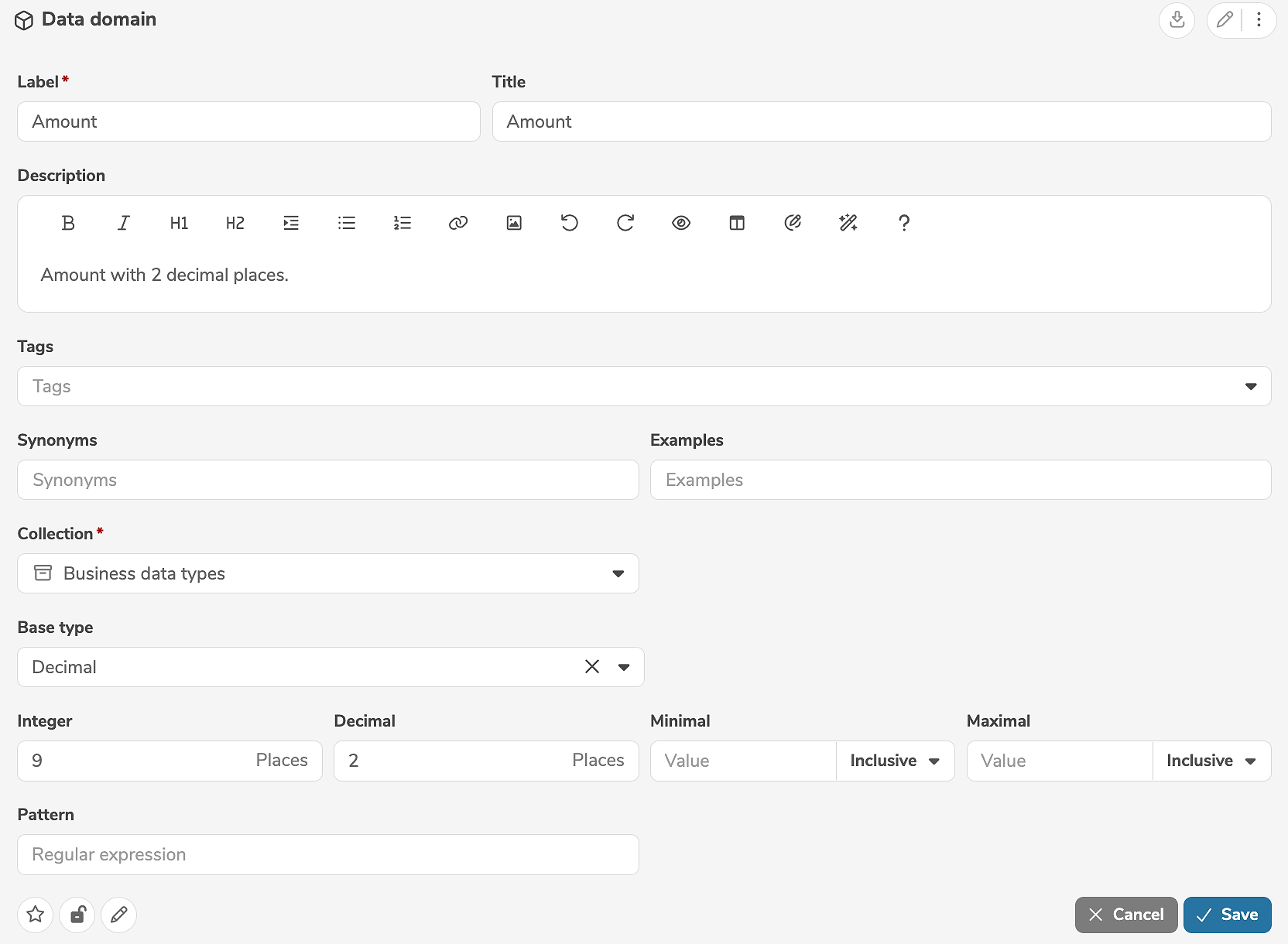

Bearbeitenansicht

The icons in the lower left corner of the edit view allow further settings to be made:

  • Clicking img marks the element as favorite.
  • Clicking img marks the element as locked.
  • Clicking img marks the element as read-only.

Clicking "Save" applies the changes.

Delete data domain

A data domain can be deleted in the main panel of the data domain, by selecting "Delete Data domain" in the menu.
